Grandtan II 2024
Grandtan II 2024
Couldn't load pickup availability
Unlimited Adventures
Grandtan paints your life with colors and offers more possibilities for exploration and discovery.
48V*20Ah UL-Recognized Battery Pack
48V*750W Rear Mounted Motor
20 MPH Top Speed
Up to 85+ Miles per Charge (PAS1)
350lbs +100lbs Payload Capacity
4.0 Inch KendaFat Tires
4-inch Kenda fat tires, with layers of
inner tube protector, high-volume
inner tube and anti-slipcover tire.
Grandtan M-340 fat tire-trike is
ready for most types of terrains,
including sandy beaches.
750W Rear-Mounted Motor
The rear-mounted motor makes the Grandtan much more stable and helps maintain a better balanced ride when climbing hills
- Max Motor Torque: 90Nm
- Peak Motor Watts: 1,000W
20Ah High Capacity Samsung Cell Battery
Grandtan M-340 fat tire e-trike is adapted to the EB 2.0 battery, the world's first 48V*20Ah UL-certified battery cells. It ensures an estimated max range of 85 miles with PAS 1 mode (8 MPH).
- Charging Time: 9-10 hrs
- Per Charge: 40-85 Miles
Rear Differential: Turn Better
The differential allows the rear wheels to adjust to different speeds and terrains, helping you reduce slippage and hopping on turns. Grandtan better ensures you smooth and safe trike riding.

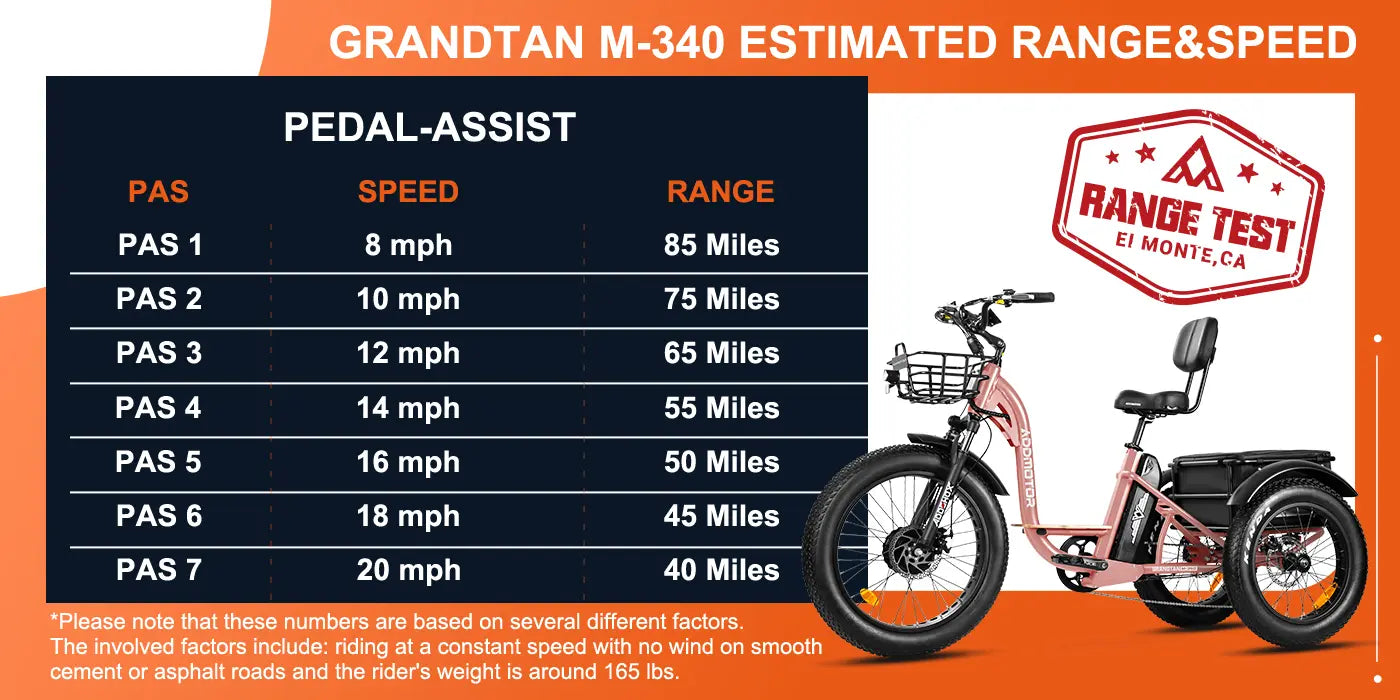

Up To 85 Miles Riding Range Go Anywhere You Like
The new version of Grandtan M-340 combines all the advantages of Addmotor electric trikes, long riding range impresses your riding experience.

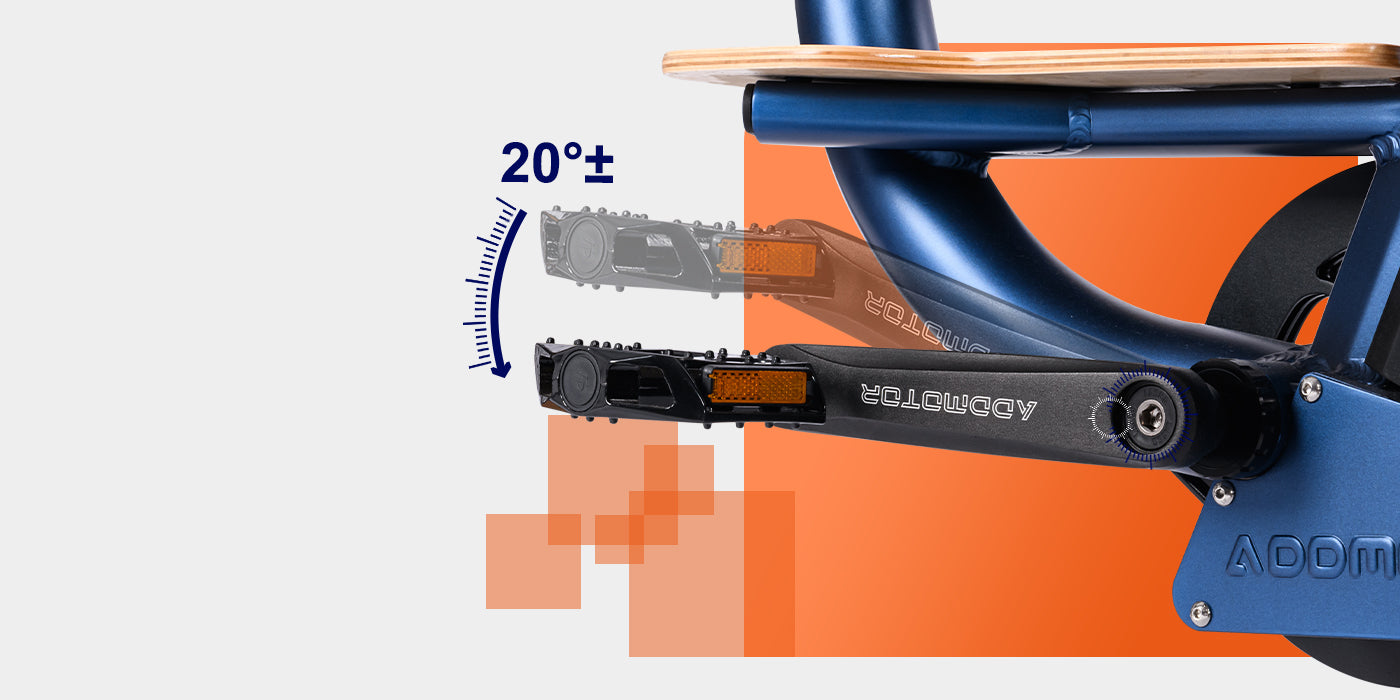

Smooth, Responsive Pedaling
With the mid-axis torque sensor, the Grandtan can better match your pedaling effort, boosting your efficiency and comfort for a more natural and responsive ride.

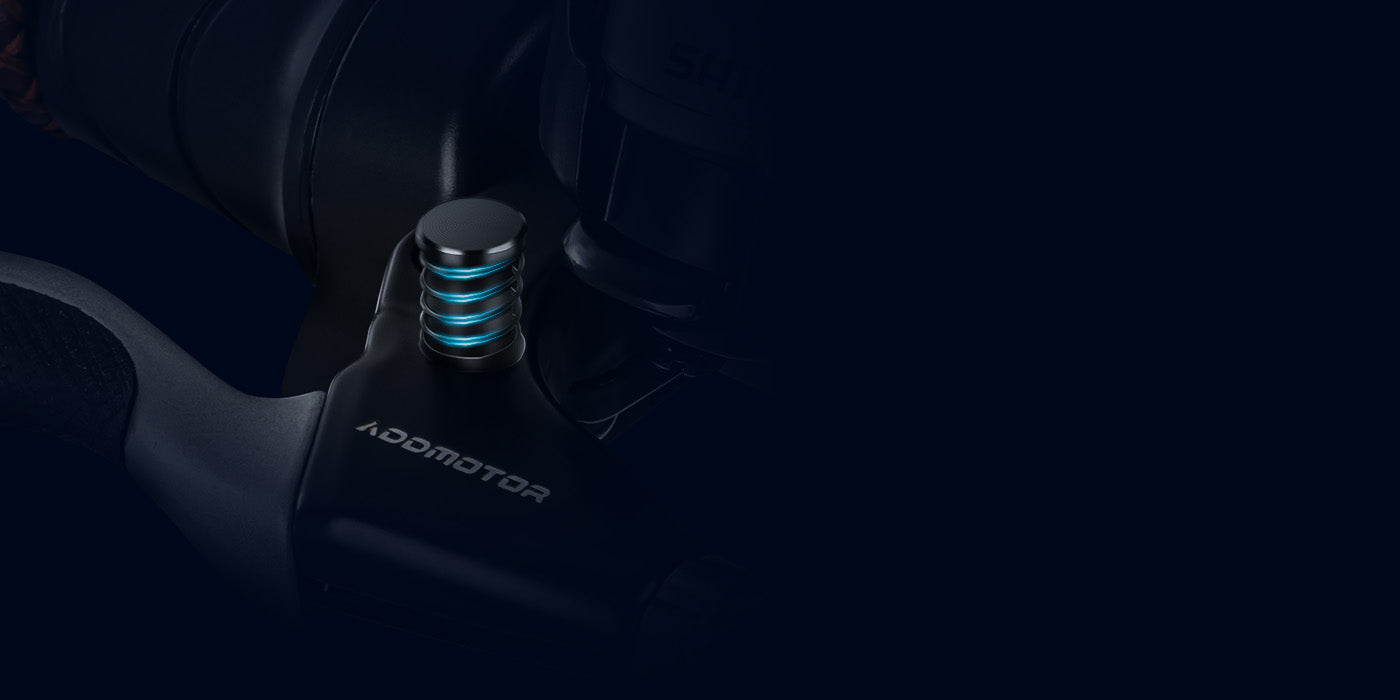

No Roll, No Slip
The new parking brake system can lock the wheels in place when activated. So you can stop or park anywhere with confidence.
Specification
Motor: Bafang 48V*750W Rear Brushless Hub Motor, 90 N·M Torque
Battery: Samsung 48V*20Ah (960Wh) with 3200 Cells Battery Charging Time 10 Hours And Rated For 1000 to 1500 Charge Cycles
Display: Addmotor 5-Inch LCD Display
Controller: Addmotor 25A Controller
USB Port: Integrated in Display, 5V, 1Amp
Throttle: Right Hand Half Twist Throttle with Switch
Wiring: Water-Resistant Connectors and Wiring Harness
Range: 85+ Miles Per Charge with PAS 1 (Estimate)
Lights: Front: Electric Headlight TRENDO by Spanninga Rear: Electric Taillight & Braking Light SOLO by Spanninga
Wiring: Water-Resistant Connectors and Wiring Harness
Pedal Assist: 7 Level Pedal Assist, Torque Sensor
Charger: 48V*2.0A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
Components
Frame: 6061 Aluminum Alloy Frame
Brake Rotors: 180mm F/2*180mm Rear
Grips: Durable Ergonomic Design
Saddle: Addmotor Exclusive Well Padded Saddle with Backrest
Spokes: Stainless Steel, F: 12-Gauge, R: 13-Gauge
Basket: Front: Removable, Aluminum Rear: Removable, Aluminum 100lbs Carrying Capacity
Shifter: SHIMANO TOURNEY Right Thumb Shifter 7-Speed, SIS Index System
Front Fork: Oil Spring Fork with 80mm of Travel
Stem: Aluminum 100mm + Adjustable Angle (90 degrees)
Handlebar: Black Aluminum 630mm Wide, Sweep Back
Seatpost Clamp: Quick Release
Pedals: Wellgo Aluminum with Reflectors, Standard 9/16" x 20 TPI Threading
Crankset: Prowheel Ounce, 48T Chainring, 170mm Crank Length
Freewheel: Shimano SIS Index 7-Speed, 14-32T
Brake: Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Tires: Kenda GIGAS 24" x 4.0" F/20" x 4.0" R Fat Tires
Seat Post: Aluminum 270mm x 31.8mm
Rims: Aluminum Double Wall, 36H
Fenders: Aluminum, Front Included
Derailleur: SHIMANO TOURNEY TY300 Rear Derailleur, 7-Speed
Chain: KMC Rust Resistant Chain
