TRIKETAN II M-330 2024
TRIKETAN II M-330 2024
Couldn't load pickup availability
Triketan M-330 II 2024

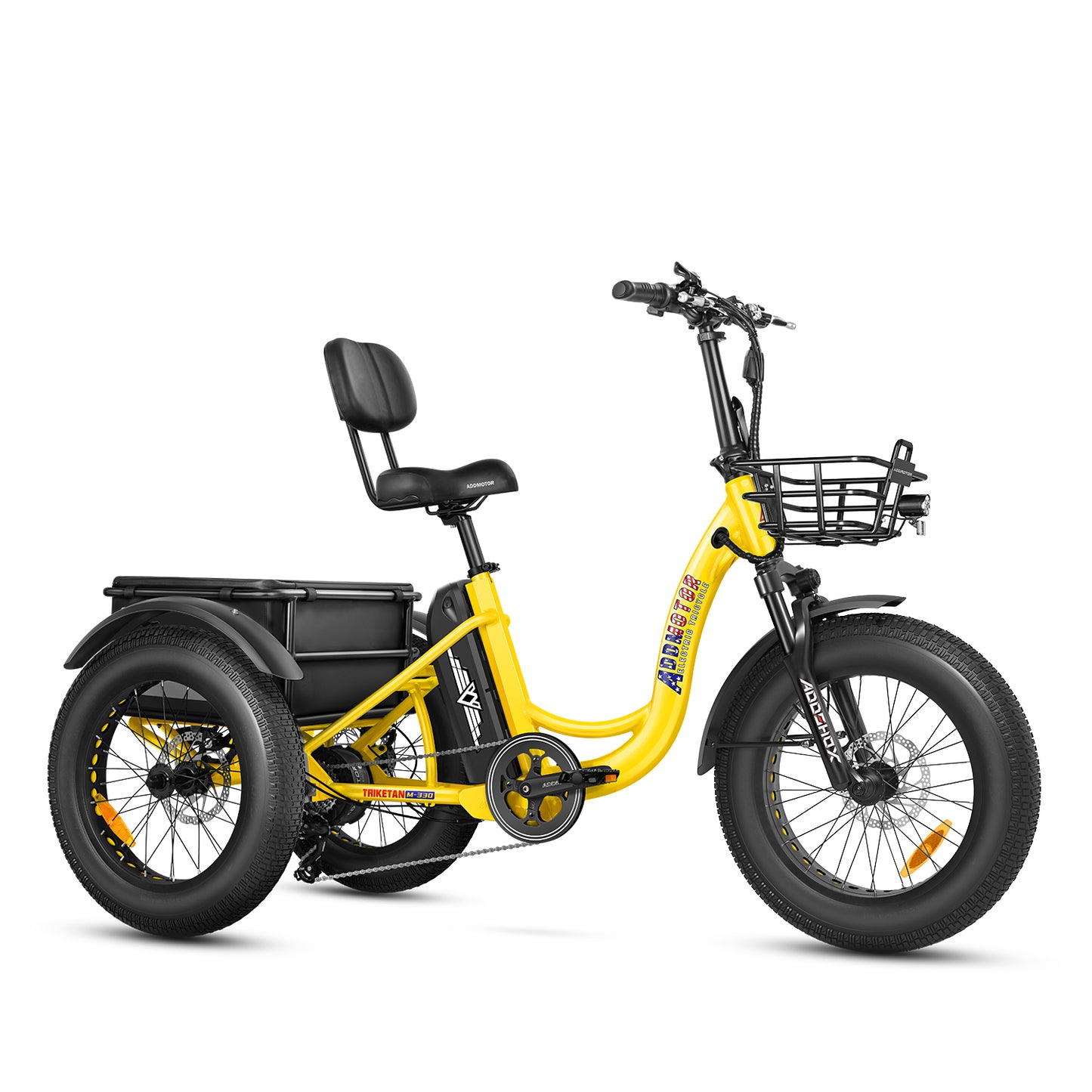

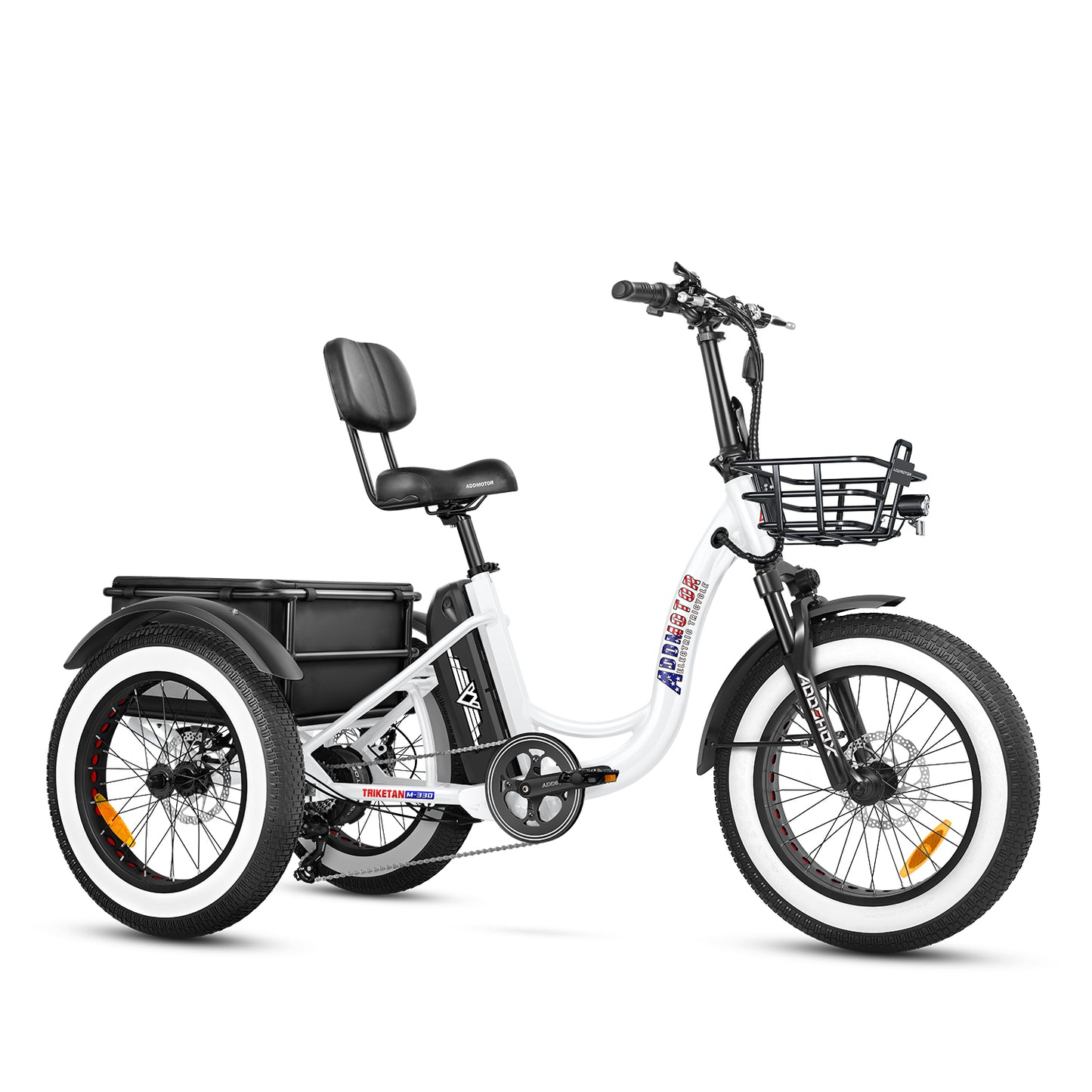

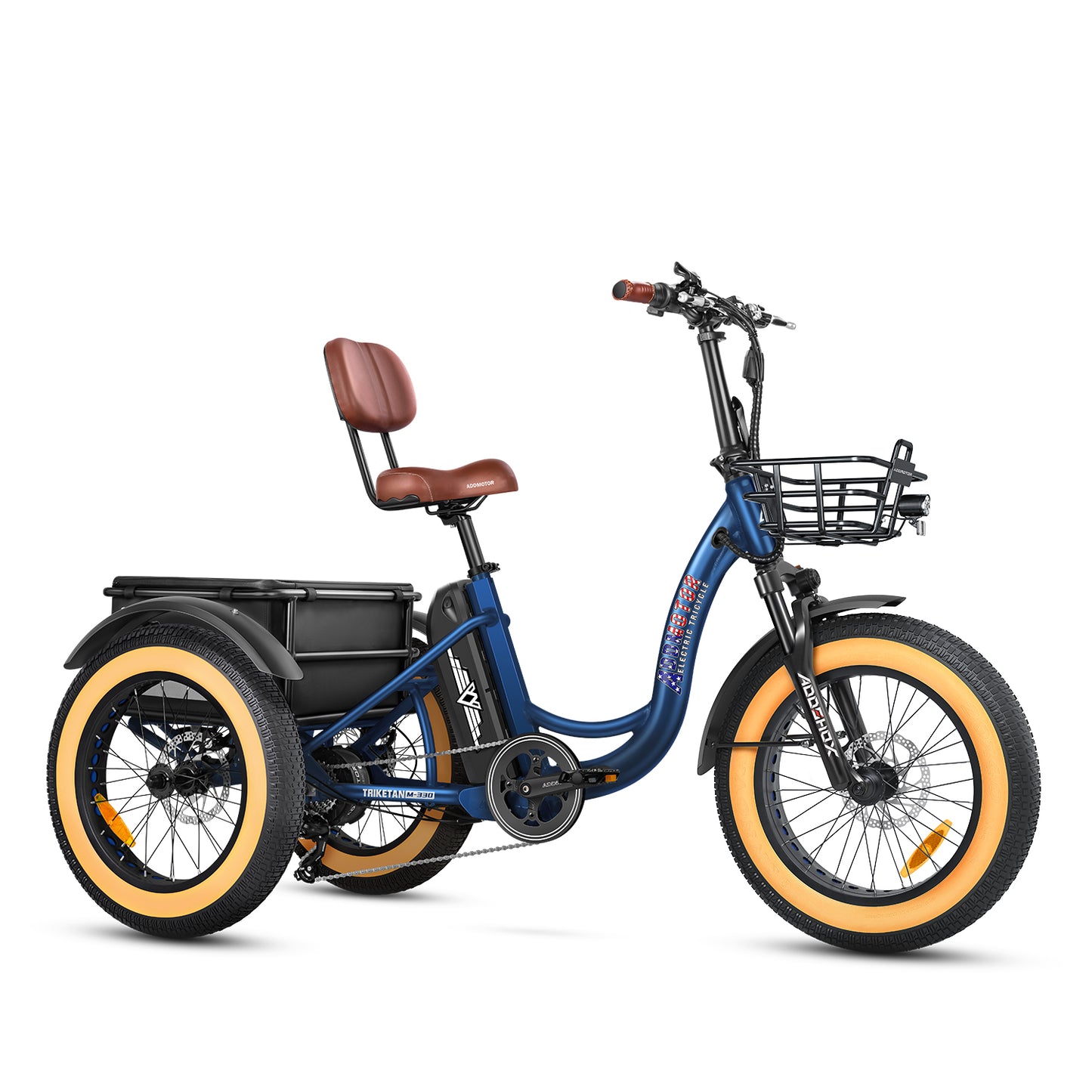

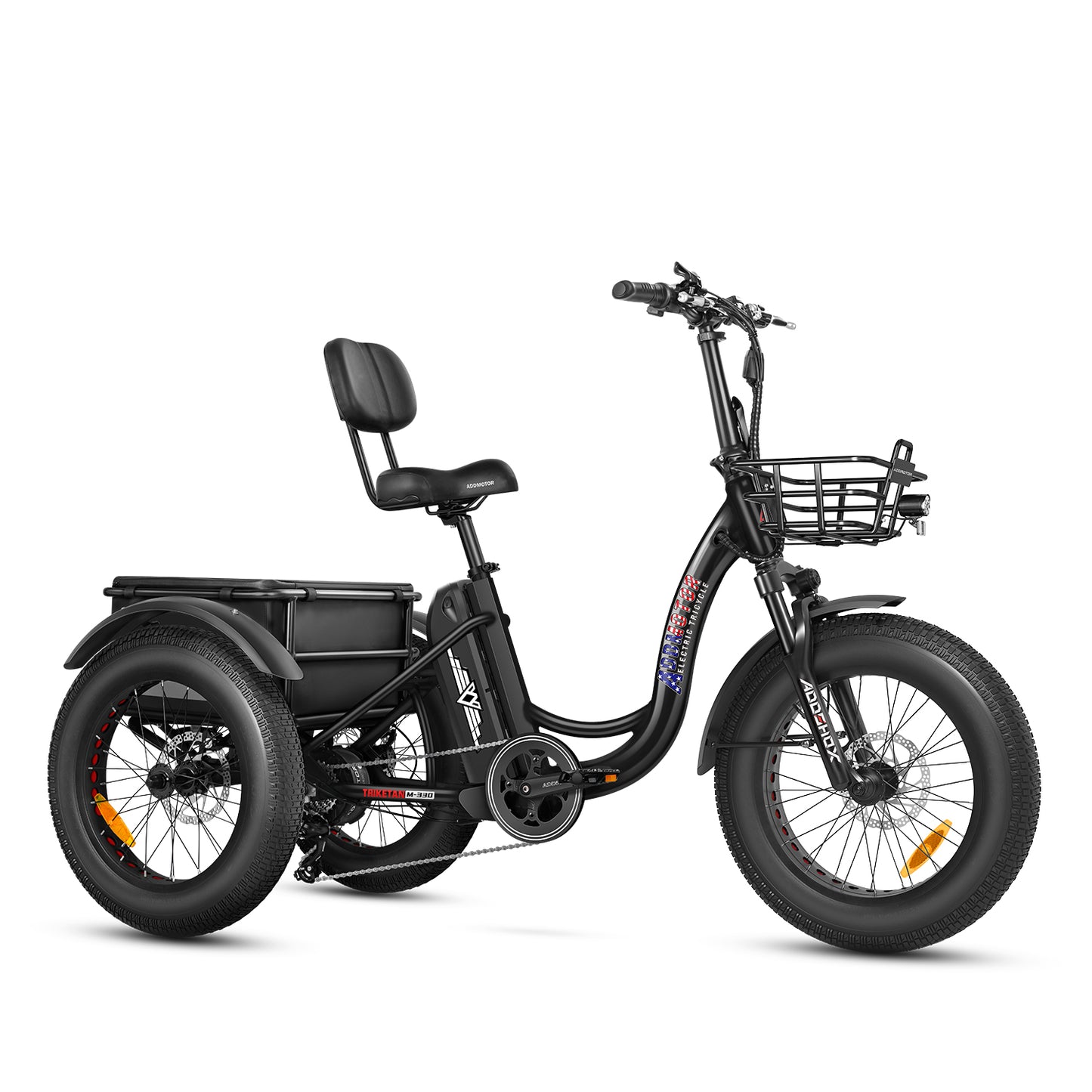

The newly upgraded version of the M-330 still carries the same stylish look as before, with 6 colors: Pearl White, Black, Cyan Green, Candy Red, Neptune Blue, Yellow.
48V*20Ah Samsung Lithium-ion Battery
48V*750W Rear-Mounted Motor
20 MPH Top Speed
Up to 85+ Miles per Charge (Estimate)
350lbs +100lbs Payload Capacity
Step-Thru Fat Tire Electric Trike
With 3-wheel construction and step- thru frame, this electric tricycle is easy to get on and off. You can ride stably on paved bike lanes or beautiful sandy beaches.
48V * 750W Rear-Mounted Motor
Using a Bafang 750W hub motor in the front wheel offers great power to carry about 100lbs items, climb hills,
and accelerate quickly.
48V*20Ah Samsung Cell Battery
M-330 fat tire-trike is adapted to the
EB 2.0 battery, the world's first 48V*20Ah UL-certified battery. It ensures an estimated max range of 85 miles.
Kenda 20" X 4.0" Tires
The M-330 adult electric trike is the best value fat tire model. The 4'' tires help you ride smoothly on most terrain and the 20'' wheels are more compact and do better in turning.
Up To 85 Miles Riding Range Go Anywhere You Like
The fat tire electric trike M-330, with its strong and durable frame and 4"wide tires, is basically designed for various uneven terrain. Wind in the face, fresh air and you can go anywhere. That’s the promise of the Motan M-330 electric trike.

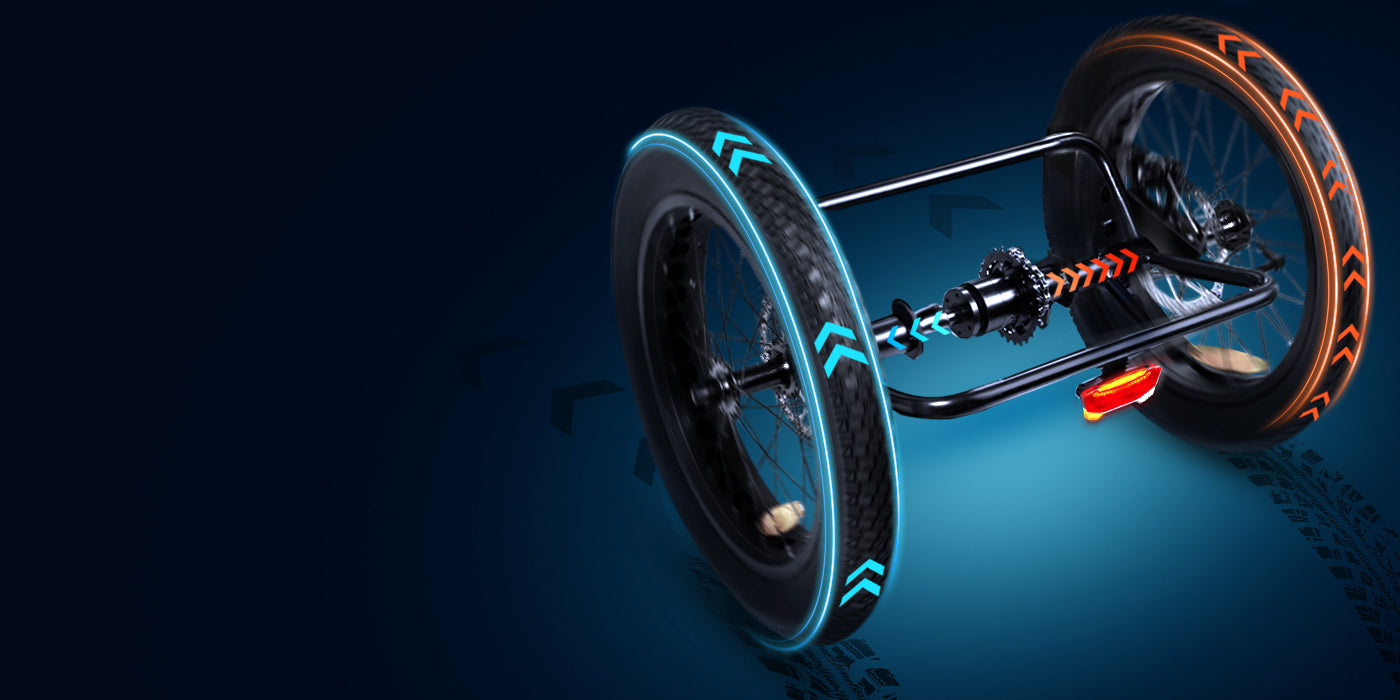

Rear Speed Differential
Upgraded with rear differential to take your riding experience to new heights. Enjoy enhanced stability and maneuverability, making your rides smoother and more enjoyable than ever before.
Parking Brake
This trike is now newly equipped with a reliable parking brake system that ensures secure parking on any terrain. Discover the joy of effortless rides, extended range, and the freedom to explore in style with the Triketan M-330 II.

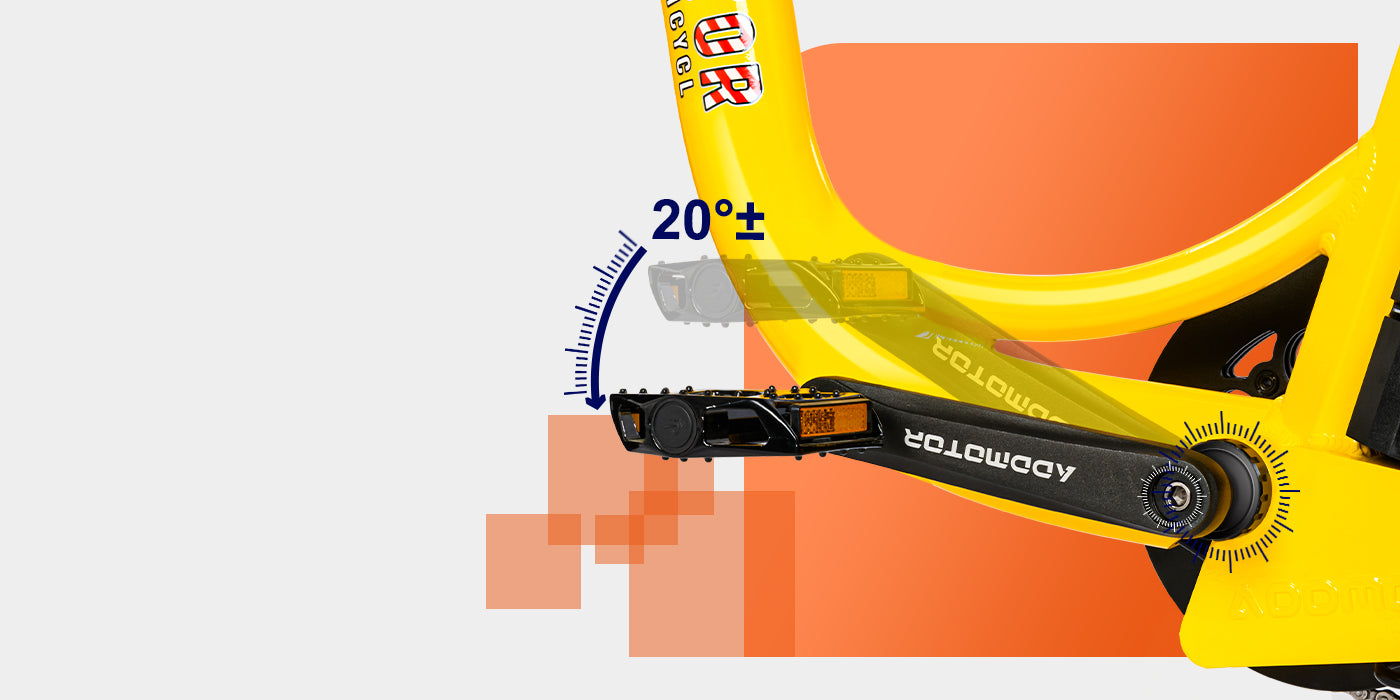

Advanced Torque Sensing Technology
With the Torque Sensing system, the trike can intelligently detect your pedaling force and provides the perfect amount of assistance, making uphill climbs and long rides effortless.
Specification
Motor: Addmotor 48V*750W Rear-mounted Motor, 90 N·M Torque
Battery: Samsung 48V*20Ah Cells Battery Charging Time 9-10 Hours And Rated For 1000 to 1500 Charge Cycles
Display: Addmotor 5-Inch LCD Display
Controller: Addmotor 25A Controller
Throttle: Variable Speed Control - 1/2 Twist Throttle
HeadLight: Powered By Main Battery And Controlled By the uneven buttons
Taillight: Powered By Main Battery And Controlled By Display with Brake Light Function
Wiring: Water-Resistant Connectors and Wiring Harness
Pedal Assist: 7 Level Pedal Assist, Torque Sensor
Charger: 48V*2.0A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
Components
Frame: 7A19 Aluminum Alloy Frame
Rotors: 180mm F / 2*180mm Rear
Chain Puller: Shimano 7 Speed / ALTUS M310
Basket: Front and A Rear Basket Waterproof Bag
Front Fork: Mozo 50mm of Travel
Chain: KMC Rust Resistant Chain
Handlebar: Black Aluminum Foldable Handlebar
Brake Lever: Tektro EL555-RT/EL550-RS
Tires: Kenda 20" X 4.0" 30 TPI Fat Tires
Seat Post: Quick Release 30cm
Geometry
